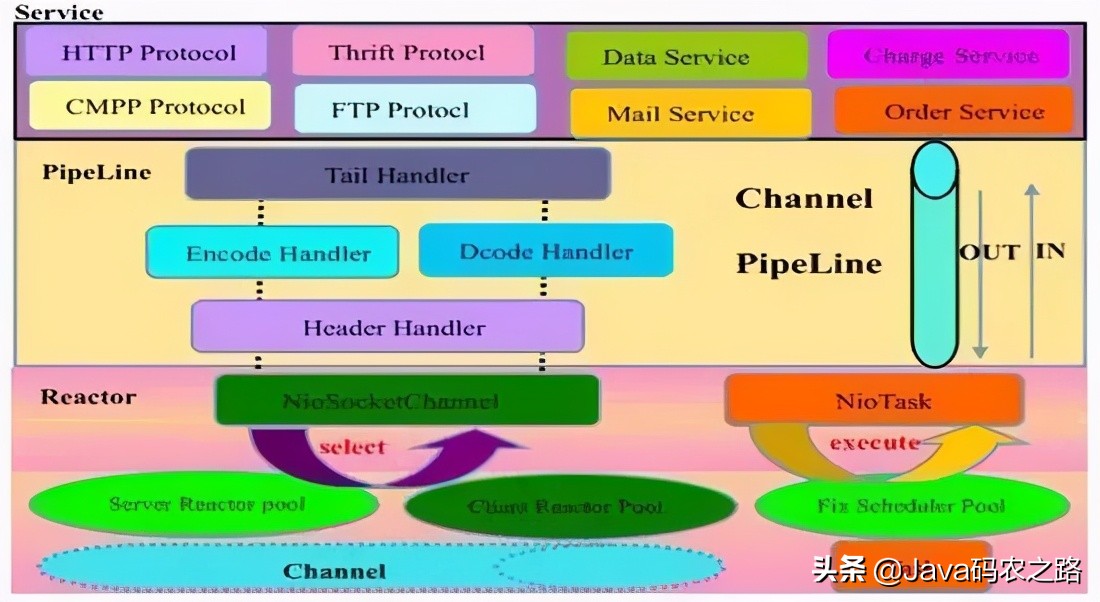

[Caption: Netty’s Heart—Data flow in EventLoop & Pipeline, arranged like a precision Swiss watch, ordering the chaotic network bits.]
0. The Premise: Silent Cornerstones and New Storms
It is currently snowing lightly in New York, with the temperature dropping to 31°F (about -0.5°C). On this biting yet lucid Sunday afternoon, it is fitting to discuss things that are cold and solid—like TCP packets, memory barriers, and Netty.
If you are a Java developer, you may have never directly imported the io.netty package, yet your code dances on its shoulders every moment. When you call Cassandra to store data, when you communicate via gRPC microservices, or even when you simply start a Spring Boot WebFlux application, Netty is silently devouring billions of bytes in the background. It is the silent watchman of the JVM ecosystem, the force that allowed Java to shed its “slow” stereotype and stand firm on the battlegrounds of C10K and even C10M (tens of millions of concurrent connections).
However, the key to this premise lies not in praise, but in crisis.
For a long time, Netty’s dominance was built upon a core pain point: Native Java threads were too expensive. To avoid the massive overhead of operating system threads, Netty forced us to fracture logic into fragmented Callbacks and stuff them into the EventLoop. But now, Java 21+ brings Project Loom (Virtual Threads), attempting to make threads as cheap as objects. When “blocking” is no longer a sin, will this old king, born for “non-blocking” I/O, face his twilight?
1. The Deconstruction: Mechanism and Essence
Netty became the “de facto standard” not merely because it encapsulated NIO, but because it reconstructed the JVM’s space-time view of I/O processing.
Architectural Perspective: The Art of Reactor Multiplexing
In Netty’s world, the EventLoop is the absolute ruler.
You can imagine it as a tireless single-threaded heart. Unlike the luxury of “one thread per connection” in traditional BIO (Blocking I/O), Netty adopts the Reactor Pattern. A single EventLoop thread can hold hundreds or thousands of Channels (connections). It polls continuously in an infinite loop:
- Select: Who sent data?
- Process: Handle ready I/O events.
- RunAllTasks: Execute non-I/O tasks in the queue.
This design squeezes CPU efficiency to the limit, avoiding the “jitter” caused by massive thread context switches.
Zero-Copy: Escaping the Gravity of GC
If the EventLoop solves the efficiency of time (CPU), then ByteBuf solves the efficiency of space (Memory).
The JDK native ByteBuffer is a poorly designed product: fixed length, counter-intuitive read/write index switching (requiring frequent flip()), and difficult to reuse.
Netty invented ByteBuf, introducing Direct Memory (Off-heap) and Pooling mechanisms.
- CompositeByteBuf: When you need to stitch an HTTP Header and Body together to send, the native approach is to create a new array and copy both into it. Netty allows you to create a logical “composite view,” where no actual memory copying occurs at the bottom layer.
- Reference Counting: Outside of Java’s automatic garbage collection (GC), Netty manually implemented a reference counting mechanism. This sounds like regressing to C++, but for high-throughput network applications, this is the price that must be paid to avoid GC pauses (Stop-The-World).
Pipeline: Interceptors on the Assembly Line
ChannelPipeline is Netty’s most elegant design philosophy. It abstracts network processing logic into a doubly linked list.
- Inbound: Decode -> Decrypt -> Business Logic
- Outbound: Encode -> Encrypt -> Send
Developers simply combineChannelHandlers like building blocks. This Chain of Responsibility pattern cleanly decouples complex protocol logic.
2. The Trade-off: Balance and Selection
Technical selection is never about finding the “strongest,” but finding the “most suitable.”
Deep Comparison: Netty vs The World
- vs Apache Mina: A tear from a past era. Mina and Netty come from the same author (Trustin Lee), but Mina’s architecture showed fatigue by version V3, and community activity has dropped to zero. Conclusion: Unless maintaining a legacy system from ten years ago, there is no reason to look at Mina.
- vs Raw Java NIO: Many beginners attempt to hand-write a
Selector. Please stop this self-torture. Native NIO is not only obscure in API but also full of traps (such as the famous Epoll empty polling bug causing 100% CPU). Netty masks the quirks of different operating systems (Linux Epoll, macOS Kqueue) through extremely complex means at the bottom layer.
Key Trade-off: Complexity Tax
Netty’s high performance is not a free lunch; it levies a high cognitive tax.
- Callback Hell and State Management: In asynchronous programming, your business logic is minced. Maintaining user state (Context) across Handlers becomes surprisingly difficult.
- Memory Leak Risks: Since you are using manually reference-counted
ByteBuf, once you forget to callrelease(), off-heap memory leaks become a nightmare to troubleshoot. - Debugging Difficulty: When an exception occurs, the stack trace is often a pile of internal EventLoop calls, making it hard to trace back to the specific line of business code.
When should you NOT use Netty?
If you are developing a standard CRUD Web backend without ultra-high concurrency (< 1000 QPS) requirements, directly using Spring Boot (Tomcat/Jetty mode) is the more rational choice. Introducing 200% development complexity for a 10% performance gain is a dereliction of duty for an architect.
3. The Insight: Trends and Value
Trend Deduction: Plate Tectonics Triggered by Virtual Threads
This is currently the most controversial topic. Java 21’s Virtual Threads allow us to write code in a synchronous blocking manner while achieving performance close to asynchronous non-blocking.
- The Conflict: Netty’s core relies on
ThreadLocalto optimize memory allocation (PooledByteBufAllocator). However, virtual threads may switch frequently between different carrier threads (potentially millions of times), rendering Netty’s original thread-based pooling strategy ineffective, or even causing memory waste. - Future Landscape:
- Business Layer Returns to Blocking: For most HTTP business logic, the “Thread-per-Request” model based on virtual threads will replace Netty’s async callback model. Code becomes more readable, and debugging becomes linear.
- Netty Sinks to “Infrastructure”: Virtual threads cannot solve everything. In the realms of protocol encoding/decoding, TCP packet framing, fine-grained traffic control, and UDP transmission, Netty remains the irreplaceable king.
Value Anchor:
The future architecture may evolve into: Netty at the Edge doing gateway and protocol adaptation, Virtual Threads at the Core doing business orchestration. Netty will become more low-level, invisible to the average developer, yet remaining the “blood vessels” of the entire system.
4. Conclusion: The Connection
Reviewing Netty’s design, I see not just code, but an extreme mastery of time and space.
In that era when threads were expensive, Trustin Lee and the community geeks traded “asynchrony” for the freedom of time, and “zero-copy” for the surplus of space. It is an art of survival in a resource-scarce environment.
Although the emergence of Loom makes computational resources seem less scarce, this reverence for underlying principles and the squeezing of performance limits remains the most fascinating part of software engineering.
Final Words:
Do not throw away your Netty book just because of Virtual Threads. Understanding Netty is understanding how computer networks dance between the OS kernel and user space.
In this era where technology iterates like turbulence, may your code be like Netty’s EventLoop—forever lucid in the closed loop, never blocking.
—— Lyra Celest @ Turbulence τ
References
- Micronaut: Transitioning to virtual threads using the Micronaut loom carrier – Analysis on the conflict between Netty pooling and virtual threads
- Evaluation of Virtual Threads and RxJava – Performance comparison data support
- Netty Project Architecture – Official Architecture Documentation
- GitHub Project: netty/netty
